The main application scope of the industrial aluminum foil falls on cooling fins of air conditioners. The main alloys of air conditioner foil are 1100, 1200, 8011, 3102 etc. The main chemical composition for air conditioner foil produced by hot rolling billet or cast rolling stock shall comply with the provisions of GB 3190-2008. But in the production, the actual control range of different manufacturers is different. The control range of chemical composition mainly considers the technical indicators such as tensile strength, elongation and cupping value of products to meet the requirements of users.

Surface quality requirements of aluminum foil for air conditioning

The surface of aluminum foil should be flat and clean, and there are no defects such as corrosion, holes, folding, brown oil spots, slit, etc. 0 state aluminum foil, surface brush water test should not be lower than grade B.

Thickness of aluminum foil for air conditioner

At present, the thickness of air-conditioning aluminum box is generally 0.10-0.12mm, and there is a trend of thinning to 0.090 mm.

Requirements for tensile strength, elongation and cupping value of aluminum joint in air conditioner

There are generally two forming methods for the heat sink fins of air conditioner: one is the drawing forming method, which requires the air conditioner foil with large deep drawing capacity. Due to the low tensile strength, the thickness of aluminum box is relatively thick, generally more than 0.11mm; The other is the thinning drawing method, which has a faster forming speed and a thickness of less than 0.11 mm, which requires not only a certain plasticity but also a high strength of aluminum foil. In other words, different forming methods have different performance requirements for air-conditioning aluminum foil. According to the market demand for air-conditioning aluminium foil, it is required to meet the forming process of stretch forming and stretch thinning forming at the same time. It is generally hoped to obtain H22 aluminum foil for air conditioning. The tensile strength is 120-130mpa, the elongation is more than 18%, and the cupping value is more than 6mm.

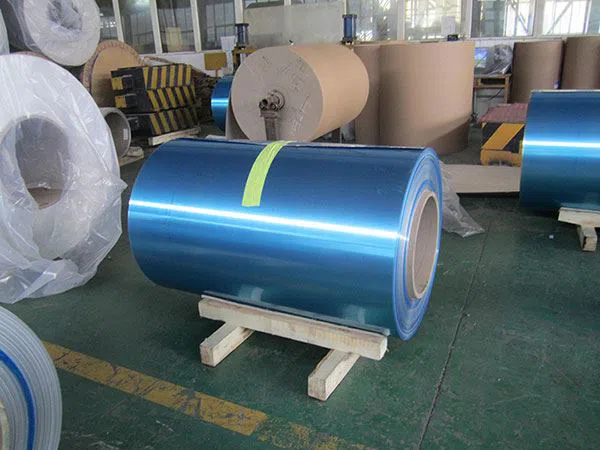

Henan Henry is a reliable factory of Air Conditioner Aluminum Fin Stock 0.12mm Various Width With Blue / Golden, 0.095MM Blue Hydrophobic Aluminum Fin Various Width Strip For Air Conditioner, Colorful Aluminum Fin Stock 0.115MM Various Width For Air Conditioner, Alloy 8011 ,1100 Hydrophilic Aluminum Foil 0.105MM With Various Width, Color Coated Aluminum Coil, Black / White Color Coated Aluminum Coil 0.25MM Various Width For Fin Stock, 0.12MM Color Coated Aluminum Coil Temper H22 For Heat Exchanger, Fin Stock Color Coated Aluminum Coil 0.095MM Various Width With Blue / Golden, Different Width Aluminum Colour Coated Coils, Hydrophobic Coating Painted Aluminum Coil, Air Conditioner Aluminum Coil, Plain / Bare Air Conditioner Aluminum Coil 0.095mm Thickness For Fin Stock.
